Recessed Emergency Downlights

AdvantaEMRG Hero
Menu

The AdvantaEMRG model offers a unique take on the emergency lighting. The fully integrated fixture includes everything in one device: a built-in EMRG pack, a conveniently located test button, and an easy-to-install design. It takes the guesswork out of code-compliant emergency illumination needs for downlights.

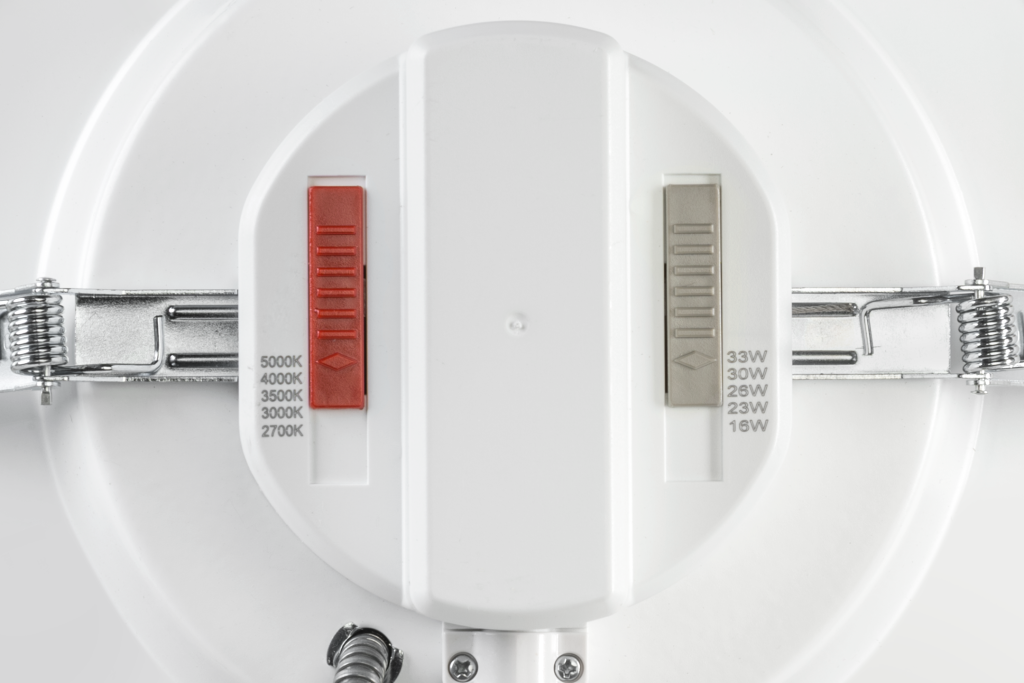

AdvantaEMRG is also equipped with Keystone’s Power Select and Color Select technology, providing all the benefits of the Advanta line without impacting emergency options. The wiring conduit includes a quick disconnect feature to aid in easy installation.


Features and benefits:

  • Power Select and Color Select technology
  • Built-in 5W LED Keystone Smart Safe Emergency Driver that is compliant with CEC T20
  • 90 CRI
  • Designed with junction box and quick disconnects for easy installation
  • Airtight and Type IC-rated
  • Suitable for use in dry and damp locations
  • 50,000-hour lifetime

Installation:
Advanta EMRG Installation

Styles and Sizes:

EMRG Sizes and Styles

Accessories:

Advanta Accessories



Downlights Brochure

Download
Energy Star logo RoHS Compliant logo 50000 Lifetime 5yrWarranty ETL Sanitation Listed Marking ETL_classified

Tech Specs

RECESSED EMERGENCY DRIVER | POWER AND COLOR SELECT

  • 90 CRI | 0-10V Dimming
    Catalog Number Nominal Size/Shape Selectable Wattage Selectable CCT Lumens Efficacy Emergency Output Input Voltage Dimmable Energy Star CRI Spec Sheet
    KT-RDLED17PS-6A-9CSE-VDIM-EM5 6″ Circular 17W 3000K 1260 74 lm/W 5W -500 lumen 120-277V 0-10V Yes >90 Download
    3500K 1330 78 lm/W
    4000K 1300 76 lm/W
    12W 3000K 900 75 lm/W
    3500K 940 78 lm/W
    4000K 930 78 lm/W
    10W 3000K 720 72 lm/W
    3500K 750 75 lm/W
    4000K 740 74 lm/W
    KT-RDLED20PS-8A-9CSE-VDIM-EM5 8″ Circular 20W 3000K 1580 79 lm/W 5W -500 lumen 120-277V 0-10V Yes >90 Download
    3500K 1680 84 lm/W
    4000K 1650 83 lm/W
    17W 3000K 1300 76 lm/W
    3500K 1380 81 lm/W
    4000K 1350 79 lm/W
    14W 3000K 1080 77 lm/W
    3500K 1150 82 lm/W
    4000K 1120 80 lm/W

ACCESSORIES
