Keystone’s SmartCurrent LED Drivers provide maximum flexibility
Keystone’s programmable SmartCurrent LED Drivers feature linear and compact form factors with multiple wattage options, from 12W to 100W. To set output current, simply program via our user-friendly software to adjust the parameters and meet your application needs.
SmartCurrent features a dim-to-off mode, enabling dimming to 1%, for precise tuning of output current. The drivers also feature a 12Vdc/ 200mA max auxiliary power output.
Program your LED driver quickly and easily.
Programming your SmartCurrent driver is as easy as using the SmartCurrent software, which is downloadable to a PC or as a smartphone app from the Android store.
With the new SmartCurrent Driver with USB port, download the app from the Android Store to your Android phone, connect the phone to the LED driver with a USB cord, and program to your preferred specifications. You can do it anywhere—behind the counter, in the field, on the fly. No need for a computer, just connect and go.
Programming is as easy as…
1. Open the SmartCurrent app and connect the driver.
2. Tap the Read Driver button
3. Input your required current and tap the Program Driver button.
It’s that simple!

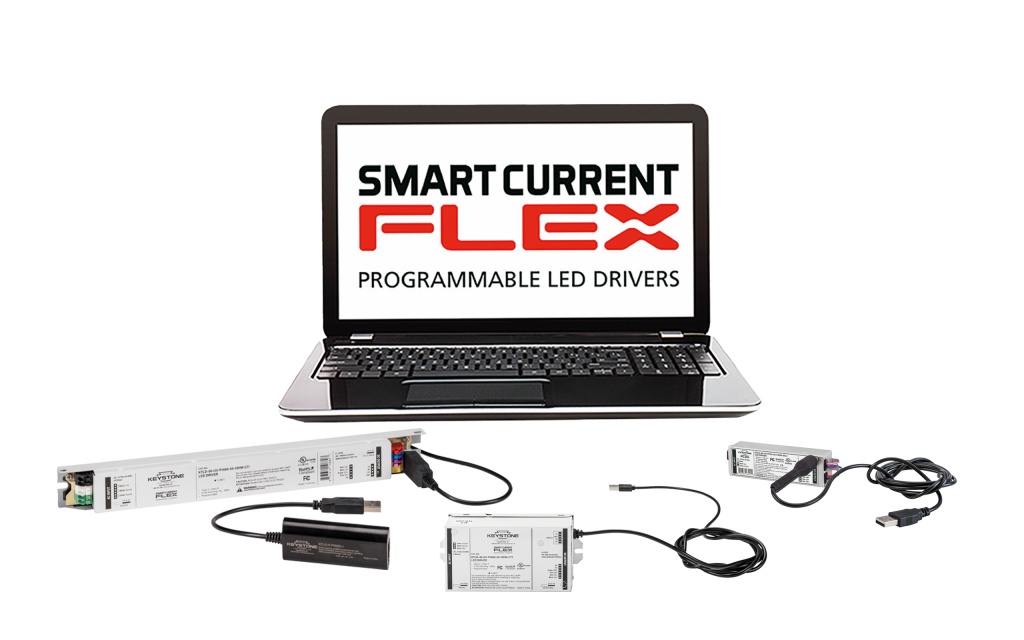

If you prefer a full setup or already have one available, our SmartCurrent Cradle is perfect for your Windows laptop or PC. Download the SmartCurrent PC software, place the driver in the cradle, connect it to the SmartCurrent PC software via the included USB cable, then use the software to program the LED driver to the specifications that best suit your needs.
Whatever way you choose, the process is fast, simple, reliable, and ready when you need it.
- Reduce inventory
- Gain output flexibility
- Programmable output current via Keystone’s SmartCurrent Cradle or the SmartCurrent app
- Meets FCC 15 (Class B) consumer limits
- Short circuit overload and open load protection
- Dimmable with 0-10V dimmer (down to 1% at max. output current)
- Auxiliary power: 12Vdc; 200mA max (not included on the 12W and 20W models)
- UL Class P
- Compatible with Keystone occupancy sensors
- Drive current (10mA increments)
- Minimum dimming level (1%, 3%, 5%, 7%, or 10%)
- Dimming curve (linear, log, inverse log, or square log)
- Minimum dimming voltage (1V, 1.5V, or 2V)
- Maximum dimming voltage (7V, 8V, or 9V)
- Dim-to-off voltage (0.8V, 1V, 1.2V, or N/A)
- Thermal foldback temperature (75°C/167°F, 85°C/185°F, or 90°C/194°F)
SmartCurrent USB Sell SheetDownload
LED Drivers BrochureDownload
Smart Current SoftwareDownload
Module Driver Pairing GuideDownload
- SMARTCURRENT USB
Class 2 Catalog Number Max Output Power Input Voltage Output Current Output Voltage OCV US Canada Case Style Spec Sheet KTLD-12-UV-SC500-56-VDIM-AF1 /USB 12W 120-277V 120-500mA 10-56V 60V Yes No AF1 Download KTLD-20-UV-SC730-56-VDIM-AF4 /USB 20W 120-277V 200-730mA 10-56V 60V Yes No AF4 Download KTLD-25-UV-SC1250-56-VDIM-W1 /USB 25W 120-277V 420-1250mA 10-56V 60V Yes No W1 Download KTLD-30-UV-SC1050-56-VDIM-U7 /USB 30W 120-277V 350-1050mA 10-56V 60V Yes No U7 Download KTLD-40-UV-SC1400-56-VDIM-W1 /USB 40W 120-277V 470-1400mA 10-56V 60V Yes No W1 Download KTLD-50-UV-SC1400-56-VDIM-U7 /USB 50W 120-277V 470-1400mA 10-56V 60V Yes No U7 Download KTLD-85-UV-SC2600-56-VDIM-U4 /USB 85W 120-277V 860-2600mA 10-56V 60V Yes No U4 Download KTLD-100-UV-SC3000-56-VDIM-U4 /USB 100W 120-277V 1500-3000mA 10-56V 60V Yes No U4 Download
Input Characteristics Output Characteristics Features Catalog Number Input Voltage Power Factor Max Current Output Power Rated Output Current Output Voltage Efficiency Case Style Spec Sheet KTLD-12-UV-SC500-56-VDIM-AF1 120-277Vac >0.9 TBD 12W 120 –500mA 10-56V TBD AF1 Download KTLD-20-UV-SC730-56-VDIM-AF4 120-277Vac >0.9 0.23A @120V 20W 200 –730mA 10-56V 86% (at 120V) AF4 Download KTLD-25-UV-SC1250-56-VDIM-W1 120-277Vac >0.9 0.28A @120V
25W 420-1250mA 10-56V 86% (at 120V) W1 Download KTLD-25-UV-SC1050-56-VDIM-AQ7 120-277Vac >0.9 0.5mA at 277V 25W 350-1050mA 10-56V TBD AQ7 Download KTLD-30-UV-SC1050-56-VDIM-U7 120-277Vac >0.9 0.31A @120V
30W 350-1050mA 10-56V 86% (at 120V) U7 Download KTLD-40-UV-SC1400-56-VDIM-W1 120-277Vac >0.9 0.49A @120V
40W 470-1400mA 10-56V 86% (at 120V) W1 Download KTLD-50-UV-SC1400-56-VDIM-U7 120-277Vac >0.9 0.52A @120V
50W 470-1400mA 10-56V 86% (at 120V) U7 Download KTLD-70-UV-SC2800-56-VDIM-W2 120-277Vac >0.9 0.5mA @277V 70W 900-28000mA 10-56V TBD W2 Download KTLD-85-UV-SC2600-56-VDIM-U4 120-277Vac >0.9 0.89A @120V
85W 860-2600mA 10-56V 86% (at 120V) U4 Download KTLD-100-UV-SC3000-56-VDIM-U4 120-277Vac >0.9 1.02A @120V
100W 1500–3000mA 10-56V 89% (at 120V) U4 Download
- PROGRAMMING ACCESSORIES
Catalog Number Description Spec Sheet KTLD-SC-PGMR-1 SmartCurrent Cradle with micro-USB cable Download KTLD-SC-ADPT-1A Programming jig adapter for Keystone SmartCurrent LED drivers with U7 or U4 cases. For
handheld programming options. Must be used in conjunction with KTLD-SC-PGMR-1
Download KTLD-SC-ADPT-1B Programming jig adapter for Keystone SmartCurrent LED drivers with W1 cases. Must be used in
conjunction with KTLD-SC-PGMR-1
Download KTLD-SC-ADPT-1C Programming jig adapter for Keystone SmartCurrent LED drivers with W1 cases. Must be used in
conjunction with KTLD-SC-PGMR-1
Download KTLD-SC-ADPT-1D Programming jig adapter for Keystone Smart Current LED Driver. Must be used in conjunction with KTLD-SC-PGMR-1 Download KTLD-SC-ADPT-1E Programming jig adapter for Keystone Smart Current LED Driver. Must be used in conjunction with KTLD-SC-PGMR-1 Download
