Keystone’s LED Panel Light fixtures provide an architectural grade, energy-saving solution for outdated fluorescent ceiling light panels as well as new installations. Panel Light fits seamlessly within T-grid ceilings. Alternatively, the optional suspended mounting system can be utilized for maximum flexibility in fixture placement. If emergency lighting is required, Keystone’s Smart Safe LED emergency backup can be used with these LED flat panel lights.
Powered by a dedicated Keystone driver and built with superior quality LEDs, Panel Light produces edge-to-edge, evenly diffused lighting that is remarkably consistent from fixture to fixture. The high quality light guide plate offers optimal light diffusion with no risk of yellowing over product lifetime. This provides customers and employees with a noticeably more inviting and comfortable light than fluorescent ceiling light panels can produce.
Panel Light benefits:
- Enhance aesthetics with an architectural grade design
- Optimize light diffusion with no risk of yellowing over product lifetime
- Enhance quality of lighting atmosphere over fluorescent
- Save over 50% on energy consumption as compared to traditional fluorescent troffers
Product Features
- Low profile architectural grade design
- Fits standard T-Grid ceilings
- Suitable for surface or suspension mount (with optional accessories)
- Powered by Keystone 0-10V dimming LED driver with built in junction box
- Listed on DLC QPL
- LED color binning within 4 SDCM ensures color consistency between all panels
- Operating temperature range: -20C to 40C
- Low optical flicker

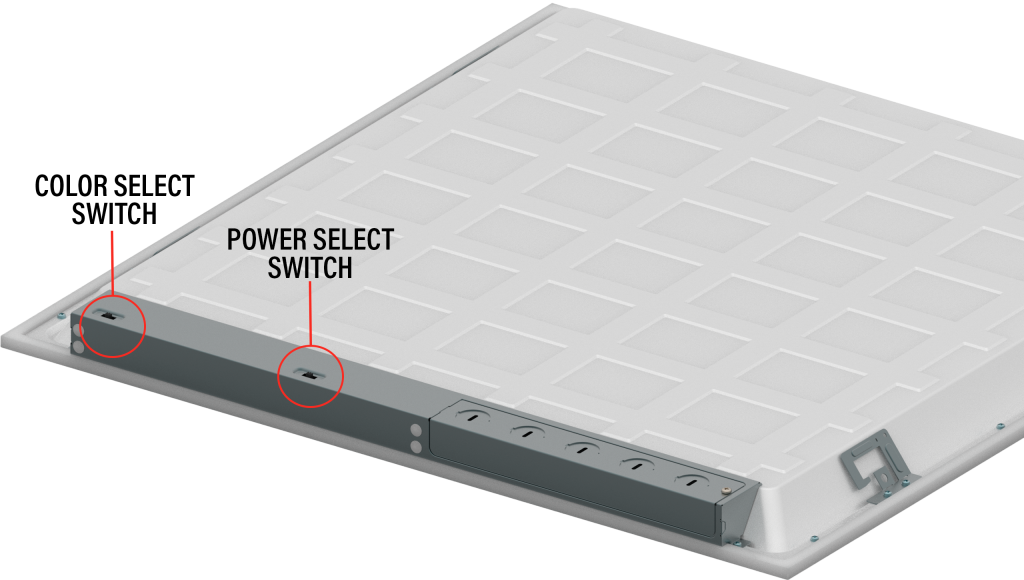

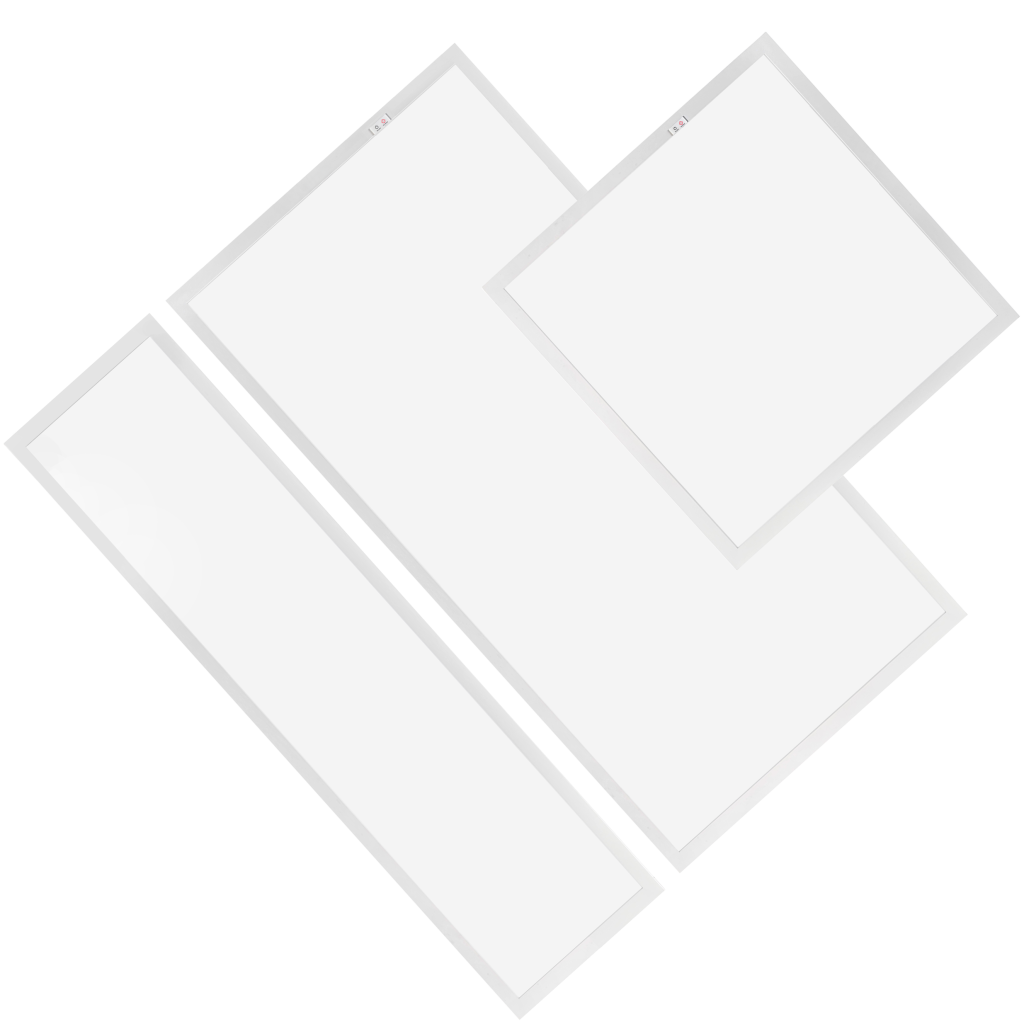

Keystone also offers new back-lit LED panel lights.
Tech Specs
- 2’x2’ LED PANEL LIGHTS
Catalog Number Color Temp Power Lumens Efficacy CRI Input Voltage Dimming Method IES File
DownloadLM-79 File
DownloadSpec Sheet KT-PLED20-22-835-VDIM-P 3500K 20W 2500 125 lm/W 81.9 120-277V 0-10V Download Download Download KT-PLED20-22-840-VDIM-P 4000K 20W 2550 127 lm/W 81.9 120-277V 0-10V Download Download Download KT-PLED30-22-835-VDIM-P 3500K 30W 3750 125 lm/W 82 120-277V 0-10V Download Download Download KT-PLED30-22-840-VDIM-P 4000K 30W 3800 127 lm/W 82 120-277V 0-10V Download Download KT-PLED30-22-850-VDIM-P 5000K 30W 3900 130 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-22-835-VDIM /G2 3500K 40W 4050 101 lm/W 82 120-277V 0-10V Download Download KT-PLED40-22-840-VDIM /G2 4000K 40W 4100 103 lm/W 82 120-277V 0-10V Download Download KT-PLED40-22-850-VDIM /G2 5000K 40W 4150 104 lm/W 82 120-277V 0-10V Download Download Download - 2’x4’ LED PANEL LIGHTS
Catalog Number Color Temp Power Lumens Efficacy CRI Input Voltage Dimming Method IES File
DownloadLM-79 File
DownloadSpec Sheet KT-PLED30-24-835-VDIM-P 3500K 30W 3750 125 lm/W 81.9 120-277V 0-10V Download Download KT-PLED30-24-840-VDIM-P 4000K 30W 3800 127 lm/W 81.9 120-277V 0-10V Download Download KT-PLED40-24-835-VDIM-P 3500K 40W 5000 125 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-24-840-VDIM-P 4000K 40W 5050 126 lm/W 82 120-277V 0-10V Download Download KT-PLED40-24-850-VDIM-P 5000K 40W 5100 128 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-24-830-VDIM /G2 3000K 40W 4000 100 lm/W 83 120-277V 0-10V Download Download KT-PLED40-24-835-VDIM /G2 3500K 40W 4000 100 lm/W 83 120-277V 0-10V Download Download KT-PLED40-24-840-VDIM /G2 4000K 40W 4100 103 lm/W 83 120-277V 0-10V Download Download KT-PLED40-24-850-VDIM /G2 5000K 40W 4200 105 lm/W 83 120-277V 0-10V Download Download KT-PLED50-24-830-VDIM /G2 3000K 50W 5000 100 lm/W 82 120-277V 0-10V Download Download KT-PLED50-24-835-VDIM /G2 3500K 50W 5100 102 lm/W 82 120-277V 0-10V Download Download KT-PLED50-24-840-VDIM /G2 4000K 50W 5200 104 lm/W 82 120-277V 0-10V Download Download KT-PLED50-24-850-VDIM /G2 5000K 50W 5300 106 lm/W 82 120-277V 0-10V Download Download Download - 1’x4’ LED PANEL LIGHTS
Catalog Number Color Temp Power Lumens Efficacy CRI Input Voltage Dimming Method IES File
DownloadLM-79 File
DownloadSpec Sheet KT-PLED40-14-835-VDIM /G2 3500K 40W 4050 101 lm/W 82 120-277V 0-10V Download KT-PLED40-14-840-VDIM /G2 4000K 40W 4100 103 lm/W 82 120-277V 0-10V Download Download KT-PLED40-14-850-VDIM /G2 5000K 40W 4150 104 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-14-835-VDIM-P 3500K 40W 4950 124 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-14-840-VDIM-P 4000K 40W 5000 125 lm/W 82 120-277V 0-10V Download Download Download KT-PLED40-14-850-VDIM-P 5000K 40W 5050 126 lm/W 82 120-277V 0-10V Download Download Download - ACCESSORIES (Sold Separately)
Request a Lighting Layout
Keystone offers complementary lighting layout services for our products, to help take the next step in bringing your project to life. We can provide answers to your lighting questions to determine how many fixtures you need, what types of lamps are best for your applications, and how to save the maximum amount of energy, all within budget.
By utilizing industry leading lighting layout design software, we provide accurate and dependable application renderings. For new constructions or retrofit, simply provide Keystone with a few key project details, and our lighting designers will get to work on your request.
