Keystone’s XFit wrap fixtures are designed to deliver general purpose lighting for surface-mount ceiling applications and are the ideal choice for schools, offices, and retail locations.
Surface mount wraparound fixtures deliver all-around illumination, and are often used in indoor applications that require typical functional light levels without a recessed ceiling grid in place.
Available with Keystone’s Power Select and Color Select technologies, which allow users to choose from among a variety of power outputs and color temperatures by flicking a switch.
Powered by a Keystone driver, these LED wrap light fixtures deliver up to 135 lm/W to provide 50% energy savings. With a useful life of at least 5 years, XFit wrap fixtures will also reduce maintenance and replacement costs compared to fluorescent fixtures.
Wrap Fixture benefits

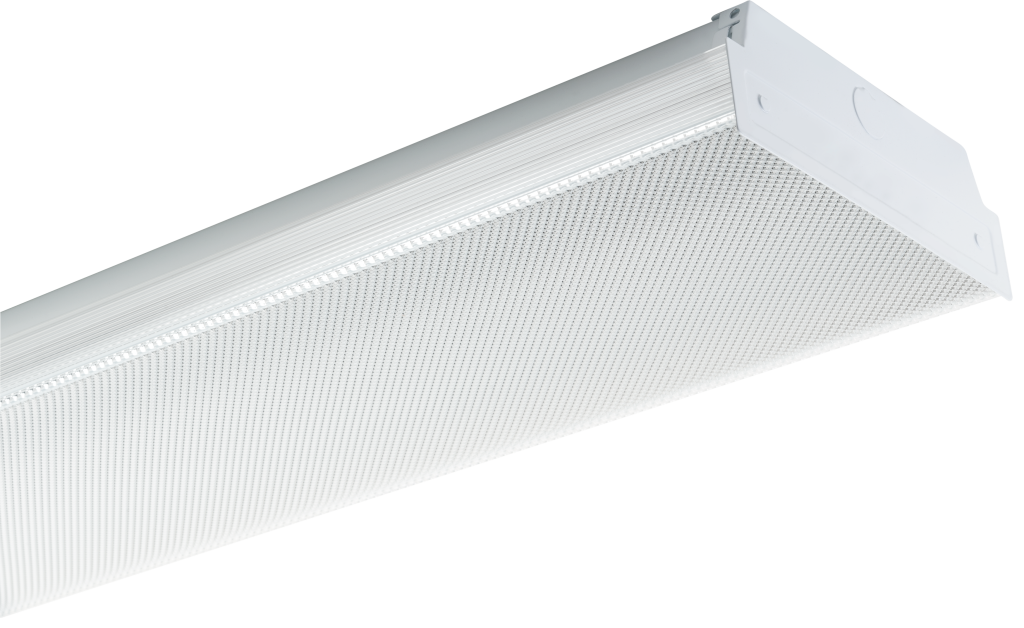

- Legacy Standard Wrap Fixture
- Maintain original environment aesthetics
- High quality luminaire construction
- Prismatic style lens for even light output without light leaks or shadows
- Optimal performance with LED solid state lighting
- Energy savings up to 50% replacing traditional fluorescent luminaires
- Maintenance savings
- Can be used with existing mounting infrastructure with minimal changes to the environment

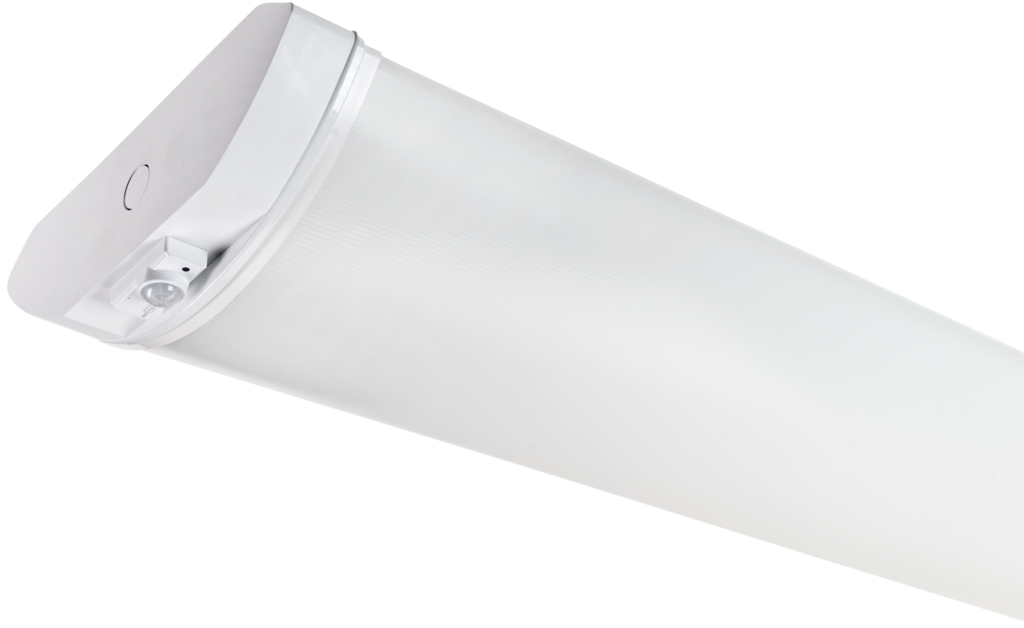

- Modern Curved Wrap Fixture
- Low profile, modern design to replace traditional look
- High quality luminaire construction
- Diffuse lens for even light output without light leaks or shadows
- Optimal performance with LED solid state lighting
- Energy savings up to 50% replacing traditional fluorescent luminaires
- Maintenance savings
- Option for suspension mounting
Product Features
- Power Select and Color Select technologies
- Powered by Keystone 0-10V dimming LED drivers
- 0-10V dimming, 10% minimum
- Compatible with Keystone SmartSafe emergency LED drivers
- Compatible with Keystone 480-277V step down transformers
- Compatible with Keystone Occupancy sensors
- Ambient operating temperature: -20°C/-4°F to 50°C/122°F
- UL listed 1598: Suitable for dry and damp locations
- THD: <20%
- Power factor: > 0.95
- L70 >100,000 hours
- Low optical flicker
Wrap Fixture Features
Tech Specs
Curved Wraps | Power and Color Selectable

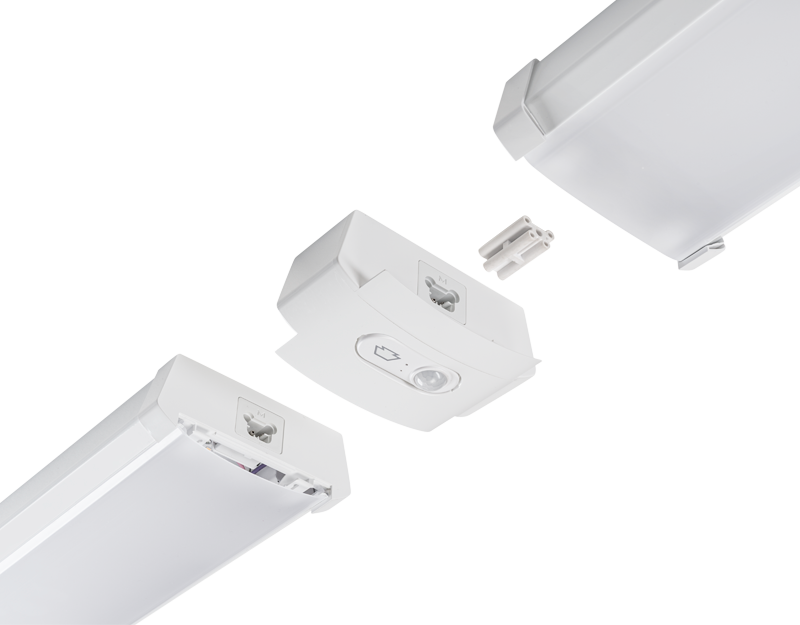

- Wrap Fixtures | SmartLoop Embedded
Catalog Number Nominal Size Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Dimmable DLC CRI Spec Sheet KT-CWLED44PS-4-8CSA-VDIM /FC2 4ft 44W 3500K 5984 136 lm/W 120-277V 0-10V Yes >80 Download 4000K 6072 138 lm/W 5000K 6116 139 lm/W 28W 3500K 4004 143 lm/W 4000K 4032 144 lm/W 5000K 4060 145 lm/W 18W 3500K 2628 146 lm/W 4000K 2646 147 lm/W 5000K 2664 148 lm/W This item requires a production order request.
- Wrap Fixtures
Catalog Number Nominal Size Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Dimmable DLC CRI Spec Sheet KT-CWLED44PS-4-8CSA-VDIM 4ft 44W 3500K 5984 136 lm/W 120-277V 0-10V Yes >80 Download 4000K 6072 138 lm/W 5000K 6116 139 lm/W 28W 3500K 4004 143 lm/W 4000K 4032 144 lm/W 5000K 4060 145 lm/W 18W 3500K 2628 146 lm/W 4000K 2646 147 lm/W 5000K 2664 148 lm/W - Sensors
Catalog Number Description Spec Sheet KTSL-FC2-12V-SM-PIR Bluetooth wireless integrated fixture controller Download - Mounts and Brackets
Catalog Number Description Spec Sheet KT-CWLED-SLB-1 Curved wrap bracket for SmartLoop KTSL-FC2-12V-SM-PIR sensor Download - Wrap Fixtures
Catalog Number Color Temp Nominal Length Input Voltage Wattage CRI Lumen Output Efficacy IES File Download Spec Sheet KT-CWLED40-4-835-VDIM-P 3500K 4′ 120-277V 40 >82 5120 128 lm/W Download Download KT-CWLED40-4-840-VDIM-P 4000K 4′ 120-277V 40 >82 5160 129 lm/W Download Download KT-CWLED40-4-850-VDIM-P 5000K 4′ 120-277V 40 >82 5200 130 lm/W Download Download - Sensors
Catalog Number Description Spec Sheet KTS-MW3-UV-KO-K2 Microwave sensor kit, includes 120-277V input to 12V DC convertor, IP65 12V input sensor head, Nomex sleeve, extension neck Download - Mounts and Brackets
Catalog Number Description Spec Sheet KT-CWLED-TRIM-1 Trim plate for KT-CWLED fixtures, used to cover up existing holes from larger fixtures, 20 in x 52 in Download - Wrap Fixtures
Catalog Number Nominal Size Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Dimmable DLC CRI Spec Sheet KT-WLED44PS-4-8CSA-VDIM 4ft 44W 3500K 5852 133 lm/W 120-277V 0-10V Yes >80 Download 4000K 5896 134 lm/W 5000K 5940 135 lm/W 28W 3500K 3948 141 lm/W 4000K 3976 142 lm/W 5000K 4004 143 lm/W 18W 3500K 2664 148 lm/W 4000K 2682 149 lm/W 5000K 2700 150 lm/W - Sensors
Catalog Number Description Spec Sheet KTS-MW3-UV-KO-K2 Microwave sensor kit, includes 120-277V input to 12V DC convertor, IP65 12V input sensor head, Nomex sleeve, extension neck Download - Wrap Fixtures
Catalog Number Color Temp Nominal Length Input Voltage Wattage CRI Lumen Output Efficacy IES File Download Spec Sheet KT-WLED33-4-835-VDIM /G2 3500K 4′ 120-277V 33 80 4220 128 lm/W Download Download KT-WLED33-4-840-VDIM /G2 4000K 4′ 120-277V 33 80 4257 129 lm/W Download Download KT-WLED33-4-850-VDIM /G2 5000K 4′ 120-277V 33 80 4290 130 lm/W Download Download
Curved Wraps | Dedicated
Standard Wraps | Power and Color Selectable
Standard Wraps | Dedicated
