OpticSwap is a Keystone innovation that makes switching optics tool free: undo two clasps, change out the optic lens, and relatch the clasps. The fixture retains its weather-resistant IP65 rating.
But it doesn’t only change the way optics are switched out. Combined with Keystone’s unique kitting approach, it also changes the market for area lights entirely.
XFit Area Lights with OpticSwap stocking specials include everything in a single box: fixture, three optics – Type III, IV, and V — pre-installed mount, dusk-to-dawn photocell, and shorting cap. That means distributors can put them on the shelf and contractors can buy them and go.
No need for detailed custom orders, long wait times, and callbacks. One fixture can do it all. Each fixture has a pre-installed lens and two alternates, so if optics need to be quickly swapped out, an installer can apply the right lens in seconds – instead of waiting to specify and order. Add to that our available SmartPort technology –contractor-friendly screw-in motion sensors that can be easily field-installed with no wiring – and XFit Area Lights with OpticSwap can take care of multiple needs in one fixture.
Area Lights with OpticSwap are featured in traditional bronze, but if you’re looking to match a specific color or style, Keystone offers them in two additional finishes: black and silver. These colors can enhance or blend into your existing space. Black and silver models also equipped with Power and Color Select technology, and you can also order an adjustable pole mount and slipfitter to match (sold separately).
Don’t need all that equipment? Keystone XFit Area Lights are also available in dedicated versions. Optics and other accessories – including square poles and square pole kits — can be purchased separately.
Low profile and energy efficient
XFit Area Lights with OpticSwap are available in large, medium, and small housings with a variety of power, mounting, optic, and sensor options. They also can be equipped with Power and Color Select, so power outputs and color temperatures are field adjustable. The fixture provides an energy-saving LED solution in a modern, low-profile design.
Features and benefits:
- Compact low-profile design delivers high-performance illumination and improves application site aesthetics
- OpticSwap feature allows optic lenses to be swapped out without tools
- Heavy-duty die-cast aluminum housing with ample heat sinking for enhanced thermal performance
- Dark Sky-friendly performance, eliminates undesirable sky glow
- Integrated NEMA/ANSI C136.10 7-pin twist-lock receptacle with shorting cap, simplifies ordering requirements for photocontrol needs
- Integral latch design for easy access to driver compartment
- Options available in bronze, black, silver, and white finishes
- Dedicated models available with precision-crafted individual optic lenses
- Four contractor-friendly mounting options available (sold separately): fixed pole mount, adjustable pole mount, slipfitter, and trunnion
- Power and Color Select technology also available on specific models
- Bi-level occupancy sensors and twist-lock photocell cell accessories available
XFit Area Lights with OpticSwap
Tech Specs
- 120-277V | Dedicated
Catalog Number Wattage CCT Lumens Efficacy Input Voltage CRI Distribution Pattern Photocell Included Housing Color Legacy Equivalent Spec Sheet Instructions KT-ALED70-S2-OSA-NM-840-VDIM 70W 4000K 10810 154 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 250W MH Download Download KT-ALED70-S2-OSA-NM-850-VDIM 70W 5000K 10810 154 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 250W MH Download Download KT-ALED100-S2-OSA-NM-840-VDIM 100W 4000K 14850 149 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 320W MH Download Download KT-ALED100-S2-OSA-NM-850-VDIM 100W 5000K 14850 149 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 320W MH Download Download KT-ALED140-M2-OSA-NM-840-VDIM 140W 4000K 20920 149 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 400W MH Download Download KT-ALED140-M2-OSA-NM-850-VDIM 140W 5000K 20920 149 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 400W MH Download Download KT-ALED210-L2-OSA-NM-840-VDIM 210W 4000K 31710 151 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 750W MH Download Download KT-ALED210-L2-OSA-NM-850-VDIM 210W 5000K 31710 151 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 750W MH Download Download KT-ALED290-L2-OSA-NM-840-VDIM 290W 4000K 42420 146 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 1000W MH Download Download KT-ALED290-L2-OSA-NM-850-VDIM 290W 5000K 42420 146 lm/W 120-277V >80 Type III Installed, Type V Included No Bronze 1000W MH Download Download - 120-277V | Power and Color Select
Catalog Number Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Dimming CRI Distribution Pattern Photocell Included Housing Color Legacy Equivalent Spec Sheet KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III installed, Type V included No Black 400W MH Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-S 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III installed, Type V included No Silver 400W MH Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED290PS-L2-OSA-NM-8CSB-VDIM-B 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III installed, Type V included No Black 1000W MH Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W KT-ALED290PS-L2-OSA-NM-8CSB-VDIM-S 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III installed, Type V included No Silver 1000W MH Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W - 277-480V | Power and Color Select
Catalog Number Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Dimming CRI Distribution Pattern Photocell Included Housing Color Legacy Equivalent Spec Sheet Instructions KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM 140W 3000K 17950 128 lm/W 277-480V 0-10V >80 Type III Installed, Type V Included No Bronze 400W MH Download Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM 290W 3000K 36320 125 lm/W 277-480V 0-10V >80 Type III Installed, Type V Included No Bronze 1000W MH Download Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W - IES Files
Catalog Number Dist Type IES File KT-ALED70-S2-OSA-NM-8XX-VDIM Type II Download KT-ALED70-S2-OSA-NM-8XX-VDIM Type III Download KT-ALED70-S2-OSA-NM-8XX-VDIM Type IV Download KT-ALED70-S2-OSA-NM-8XX-VDIM Type V Download KT-ALED100-S2-OSA-NM-8XX-VDIM Type II Download KT-ALED100-S2-OSA-NM-8XX-VDIM Type III Download KT-ALED100-S2-OSA-NM-8XX-VDIM Type IV Download KT-ALED100-S2-OSA-NM-8XX-VDIM Type V Download KT-ALED140-M2-OSA-NM-8XX-VDIM Type II Download KT-ALED140-M2-OSA-NM-8XX-VDIM Type III Download KT-ALED140-M2-OSA-NM-8XX-VDIM Type IV Download KT-ALED140-M2-OSA-NM-8XX-VDIM Type V Download KT-ALED210-L2-OSA-NM-8XX-VDIM Type II Download KT-ALED210-L2-OSA-NM-8XX-VDIM Type III Download KT-ALED210-L2-OSA-NM-8XX-VDIM Type IV Download KT-ALED210-L2-OSA-NM-8XX-VDIM Type V Download KT-ALED290-L2-OSA-NM-8XX-VDIM Type II Download KT-ALED290-L2-OSA-NM-8XX-VDIM Type III Download KT-ALED290-L2-OSA-NM-8XX-VDIM Type IV Download KT-ALED290-L2-OSA-NM-8XX-VDIM Type V Download KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM Type II Download KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM Type III Download KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM Type IV Download KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM Type V Download KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM Type II Download KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM Type III Download KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM Type IV Download KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM Type V Download - Glare Shield Kits and Optic Lens Kits
Catalog Number Description Finish Color Spec Sheet KT-ALED-GS-S2-KIT Reversible Glare Shield for Small Size Housing; Series 2 Area Lights Bronze Download KT-ALED-GS-M2-KIT Reversible Glare Shield for Medium Size Housing; Series 2 Area Lights Bronze Download KT-ALED-GS-M2-KIT-W Reversible Glare Shield for Medium Size Housing; Series 2 Area Lights White Download KT-ALED-GS-L2-KIT Reversible Glare Shield for Large Size Housing; Series 2 Area Lights Bronze Download KT-ALED-GS-L2-KIT-W Reversible Glare Shield for Large Size Housing; Series 2 Area Lights White Download KT-ALED-LENS-X2-X-KIT Lenses for OpticSwap Area Lights. Multiple catalog numbers. Download spec sheet for detailed
information.Download - Mounting Kits | Power and Color Select
Catalog Number Description Finish Color Spec Sheet KT-ALED-PMA-1-KIT-B Adjustable Pole Mount Kit. Suitable for Round or Square Poles. Black Download KT-ALED-PMA-1-KIT-S Adjustable Pole Mount Kit. Suitable for Round or Square Poles. Silver Download KT-ALED-SF-1-KIT-B Slip Fitter Mount Kit. Fits 2 3/8″ Tenon. Black Download KT-ALED-SF-1-KIT-S Slip Fitter Mount Kit. Fits 2 3/8″ Tenon. Silver Download KT-ALED-SF-1-KIT-W Slip Fitter Mount Kit. Fits 2 3/8″ Tenon. White Download - 120-277V | Power and Color Select
Catalog Number SelectableWattage Selectable CCT Lumens Efficacy Input Voltage Dimming CRI Distribution Pattern Photocell Included Housing Color Legacy Equivalent Spec Sheet Instructions KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes Bronze 400W MH Download Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED140PS-M2-OSB-PMA-8CSB-VDIM-P-W 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes White 400W MH Download Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes Bronze 400W MH Download Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED140PS-M2-OSB-SF-8CSB-VDIM-P-W 140W 3000K 17950 128 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes White 400W MH Download Download 4000K 20780 148 lm/W 5000K 19020 136 lm/W 100W 3000K 12720 127 lm/W 4000K 14750 148 lm/W 5000K 13530 135 lm/W 70W 3000K 9310 133 lm/W 4000K 10740 153 lm/W 5000K 9880 141 lm/W KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes Bronze 1000W MH Download Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes White 1000W MH Download Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W KT-ALED290PS-L2-OSB-SF-8CSB-VDIM-P 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes Bronze 1000W MH Download Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W KT-ALED290PS-L2-OSB-SF-8CSB-VDIM-P-W 290W 3000K 36320 125 lm/W 120-277V 0-10V >80 Type III Installed, Types IV and V Included Yes White 1000W MH Download Download 4000K 42770 147 lm/W 5000K 38700 133 lm/W 210W 3000K 27300 130 lm/W 4000K 31710 151 lm/W 5000K 28980 138 lm/W 185W 3000K 22970 124 lm/W 4000K 27060 146 lm/W 5000K 24440 132 lm/W - IES Files
Catalog Number Dist Type IES File KT-ALED140PS-M2-OSB-XXX-8CSB-VDIM-P Type II Download KT-ALED140PS-M2-OSB-XXX-8CSB-VDIM-P Type III Download KT-ALED140PS-M2-OSB-XXX-8CSB-VDIM-P Type IV Download KT-ALED140PS-M2-OSB-XXX-8CSB-VDIM-P Type V Download KT-ALED290PS-L2-OSB-XXX-8CSB-VDIM-P Type II Download KT-ALED290PS-L2-OSB-XXX-8CSB-VDIM-P Type III Download KT-ALED290PS-L2-OSB-XXX-8CSB-VDIM-P Type IV Download KT-ALED290PS-L2-OSB-XXX-8CSB-VDIM-P Type V Download - 277-480V | Power and Color Select
Catalog Number Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Housing Color Distribution DLC CRI Legacy Equivalent Spec Sheet KT-ALED140PSHV-M1-2-NM-8CSB-VDIM 140W 3000K 18200 130 lm/W 277–480V Bronze II Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PSHV-M1-3-NM-8CSB-VDIM 140W 3000K 18200 130 lm/W 277–480V Bronze III Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PSHV-M1-4-SF-8CSB-VDIM 140W 3000K 18200 130 lm/W 277–480V Bronze IV Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PSHV-M1-5-NM-8CSB-VDIM 140W 3000K 18200 130 lm/W 277–480V Bronze V Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED290PSHV-L1-2-NM-8CSB-VDIM 290W 3000K 37700 130 lm/W 277–480V Bronze II Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PSHV-L1-3-NM-8CSB-VDIM 290W 3000K 37700 130 lm/W 277–480V Bronze III Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PSHV-L1-4-NM-8CSB-VDIM 290W 3000K 37700 130 lm/W 277–480V Bronze IV Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PSHV-L1-5-NM-8CSB-VDIM 290W 3000K 37700 130 lm/W 277–480V Bronze V Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W - 120-277V | Dedicated
Catalog Number Wattage Lumens Efficacy Dimming Color Temp CRI Dist Type Input Voltage Rated Life Legacy Equivalent Housing Color Spec Sheet KT-ALED70-S1-3-NM-840-VDIM 70W 9,520 lm 136 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 175 – 250 W Bronze Download KT-ALED70-S1-3-NM-850-VDIM 9,660 lm 138 lm/W 5000K III Download KT-ALED70-S1-5-NM-840-VDIM 9,590 lm 137 lm/W 4000K V Download KT-ALED70-S1-5-NM-850-VDIM 9,730 lm 139 lm/W 5000K V Download KT-ALED100-S1-3-NM-840-VDIM 100W 13,700 lm 137 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 250 – 320 W Bronze Download KT-ALED100-S1-3-NM-850-VDIM 13,900 lm 139 lm/W 5000K III Download KT-ALED100-S1-5-NM-840-VDIM 13,800 lm 138 lm/W 4000K V Download KT-ALED100-S1-5-NM-850-VDIM 14,000 lm 137 lm/W 5000K V Download KT-ALED140-M1-3-NM-840-VDIM 140W 19,320 lm 138 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 400 W Bronze Download KT-ALED140-M1-3-NM-850-VDIM 19,600 lm 140 lm/W 5000K III Download KT-ALED140-M1-5-NM-840-VDIM 19,460 lm 139 lm/W 4000K V Download KT-ALED140-M1-5-NM-850-VDIM 19,740 lm 141 lm/W 5000K V Download KT-ALED210-L1-3-NM-840-VDIM 210W 29,190 lm 139 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 400 – 750 W Bronze Download KT-ALED210-L1-3-NM-850-VDIM 29,610 lm 141 lm/W 5000K III Download KT-ALED210-L1-5-NM-840-VDIM 29,400 lm 140 lm/W 4000K V Download KT-ALED210-L1-5-NM-850-VDIM 29,820 lm 142 lm/W 5000K V Download KT-ALED290-L1-3-NM-840-VDIM 290W 40,310 lm 138 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 1000 W Bronze Download KT-ALED290-L1-3-NM-850-VDIM 40,890 lm 141 lm/W 5000K III Download KT-ALED290-L1-5-NM-840-VDIM 40,600 lm 140 lm/W 4000K V Download KT-ALED290-L1-5-NM-850-VDIM 41,180 lm 142 lm/W 5000K V Download - 277-480V | Dedicated
Catalog Number Wattage Lumens Efficacy Dimming Color Temp CRI Dist Type Input Voltage Rated Life Legacy Equivalent Housing Color Spec Sheet KT-ALED140HV-M1-3-NM-840-VDIM 140W 19,320 lm 138 lm/W 0 – 10 V 4000K >80 III 277-480 V 50,000 hrs 400 W Bronze Download KT-ALED140HV-M1-3-NM-850-VDIM 19,600 lm 140 lm/W 5000K III Download KT-ALED140HV-M1-5-NM-840-VDIM 19,460 lm 139 lm/W 4000K V Download KT-ALED140HV-M1-5-NM-850-VDIM 19,740 lm 141 lm/W 5000K V Download KT-ALED290HV-L1-3-NM-840-VDIM 290 W 40,310 lm 139 lm/W 0-10 4000K >80 III 277-480V 50,000 hrs 1000W Bronze Download KT-ALED290HV-L1-3-NM-850-VDIM 40,898 lm 141 lm/W 5000K III Download KT-ALED290HV-L1-5-NM-840-VDIM 40,600 lm 140 lm/W 4000K V Download KT-ALED290HV-L1-5-NM-850-VDIM 41,180 lm 142 lm/W 5000K V Download - IES Files
Catalog Number Dist Type IES File KT-ALED70-S1-3-NM-840-VDIM III Download KT-ALED70-S1-3-NM-850-VDIM III Download KT-ALED70-S1-5-NM-840-VDIM V Download KT-ALED70-S1-5-NM-850-VDIM V Download KT-ALED100-S1-3-NM-840-VDIM III Download KT-ALED100-S1-3-NM-850-VDIM III Download KT-ALED100-S1-5-NM-840-VDIM V Download KT-ALED100-S1-5-NM-850-VDIM V Download KT-ALED140-M1-3-NM-840-VDIM III Download KT-ALED140-M1-3-NM-850-VDIM III Download KT-ALED140-M1-5-NM-840-VDIM V Download KT-ALED140-M1-5-NM-850-VDIM V Download KT-ALED210-L1-3-NM-840-VDIM III Download KT-ALED210-L1-3-NM-850-VDIM III Download KT-ALED210-L1-5-NM-840-VDIM V Download KT-ALED210-L1-5-NM-850-VDIM V Download KT-ALED290-L1-3-NM-840-VDIM III Download KT-ALED290-L1-3-NM-850-VDIM III Download KT-ALED290-L1-5-NM-840-VDIM V Download KT-ALED290-L1-5-NM-850-VDIM V Download KT-ALED140HV-M1-3-NM-840-VDIM III Download KT-ALED140HV-M1-3-NM-850-VDIM III Download KT-ALED140HV-M1-5-NM-840-VDIM V Download KT-ALED140HV-M1-5-NM-850-VDIM V Download KT-ALED290HV-L1-3-NM-840-VDIM III Download KT-ALED290HV-L1-3-NM-850-VDIM III Download KT-ALED290HV-L1-5-NM-840-VDIM V Download KT-ALED290HV-L1-5-NM-850-VDIM V Download - Mounting Kits | Dedicated
Catalog Number Description Finish Color Spec Sheet KT-ALED-PM-1-KIT Fixed Pole Mounting Kit; Suitable for Round or Square Pole Bronze Download KT-ALED-PMA-1-KIT Adjustable Pole Mounting Kit; Suitable for Round or Square Pole Bronze Download KT-ALED-SF-1-KIT Slip-Fitter Mounting Kit; Fits 2 3/8″ Tenon Bronze Download KT-ALED-TM-1-KIT Trunnion Mounting Kit Bronze Download - 120-277V | Power and Color Select
Catalog Number Selectable Wattage Selectable CCT Lumens Efficacy Input Voltage Housing Color Distribution DLC CRI Legacy Equivalent Spec Sheet KT-ALED140PS-M1-3-PMA-8CSB-VDIM-P 140W 3000K 18200 130 lm/W 120-277V Bronze III Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PS-M1-3-PMA-8CSB-VDIM-P-W 140W 3000K 18200 130 lm/W 120-277V White III Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PS-M1-5-SF-8CSB-VDIM-P 140W 3000K 18200 130 lm/W 120-277V Bronze V Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED140PS-M1-5-SF-8CSB-VDIM-P-W 140W 3000K 18200 130 lm/W 120-277V White V Yes >80 175-400W MH Download 4000K 19880 142 lm/W 5000K 19600 140 lm/W 100W 3000K 13200 132 lm/W 4000K 14500 145 lm/W 5000K 14200 142 lm/W 70W 3000K 9380 134 lm/W 4000K 10360 148 lm/W 5000K 10150 145 lm/W KT-ALED290PS-L1-3-PMA-8CSB-VDIM-P 290W 3000K 37700 130 lm/W 120-277V Bronze III Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PS-L1-3-PMA-8CSB-VDIM-P-W 290W 3000K 37700 130 lm/W 120-277V White III Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PS-L1-5-SF-8CSB-VDIM-P 290W 3000K 37700 130 lm/W 120-277V Bronze V Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W KT-ALED290PS-L1-5-SF-8CSB-VDIM-P-W 290W 3000K 37700 130 lm/W 120-277V White V Yes >80 400-1000W MH Download 4000K 41180 142 lm/W 5000K 40600 140 lm/W 210W 3000K 27720 132 lm/W 4000K 30450 145 lm/W 5000K 29820 142 lm/W 185W 3000K 24790 134 lm/W 4000K 27380 148 lm/W 5000K 26825 145 lm/W - 120-277V | Power Select
Catalog Number Wattage Lumens Efficacy Dimming Color Temp CRI Dist Type Input Voltage Rated Life Legacy Equivalent Housing Color Spec Sheet KT-ALED140PS-M1-3-PMA-840-VDIM-P 140W 19,300 lm 138 – 148 lm/W 0 – 10 V 4000K >80 III 120-277 V 50,000 hrs 175 – 400 W Bronze Download 100W 14,300 lm 70W 10,350 lm KT-ALED140PS-M1-3-PMA-850-VDIM-P 140W 19,600 lm 140 – 150 lm/W 5000K Download 100W 14,500 lm 70W 10,350 lm KT-ALED140PS-M1-5-SF-840-VDIM-P 140W 19,300 lm 138 – 148 lm/W 0 – 10 V 4000K >80 V 120-277 V 50,000 hrs 175 – 400 W Bronze Download 100W 14,300 lm 70W 10,350 lm KT-ALED140PS-M1-5-SF-850-VDIM-P 140W 19,600 lm 140 – 150 lm/W 5000K Download 100W 14,500 lm 70W 10,350 lm - LED Area Light Accessories
Catalog Number Description Finish Color Spec Sheet KT-RSC-7PN NEMA-Type 7-Pin Receptacle and Shorting Cap Black Download KT-TLSC-3PN NEMA-Type 3-Pin Shorting Cap, 0–480V Black Download KT-BH-SF-D180 Dual Bullhorn; In-line 180o; Slips over 2 3/8″ Tenon Bronze Download KT-BH-SF-T180 Triple Bullhorn; In-line 180o; Slips over 2 3/8″ Tenon Bronze Download KT-BH-SF-Q180 Quad Bullhorn; In-line 180o; Slips over 2 3/8″ Tenon Bronze Download KT-BH-SF-T120 Triple Bullhorn; 120o; Slips over 2 3/8″ Tenon Bronze Download KT-BH-SF-Q90 Quad Bullhorn; 90o; Slips over 2 3/8″ Tenon Bronze Download KT-TLP-UV-3PN NEMA-Type 3-Pin Photocell; 120–277V; 1800VA max Bronze Download KT-TLP-HV-3PN NEMA-Type 3-Pin Photocell; 277–480V; 1800VA max Bronze Download KT-PMTT-4R-SV Pole-Mount Single 2 3/8″ Tenon; Top-Mount Vertical for 4″ Round Pole Bronze Download KT-PMTT-4SQ-SV Pole-Mount Single 2 3/8″ Tenon; Top-Mount Vertical for 4″ Square Pole Bronze Download KT-PMTT-5SQ-SV Pole-Mount Single 2 3/8″ Tenon; Top-Mount Vertical for 5″ Square Pole Bronze Download KT-PMTT-4SQ-S90 Pole-Mount Single 2 3/8″ Tenon; Top-Mount Horizontal 90o for 4″ Square Pole Bronze Download KT-PMTT-4SQ-D180 Pole-Mount Dual 2 3/8″ Tenon; Top-Mount Horizontal 180o for 4″ Square Pole Bronze Download KT-PMTT-4SQ-D90 Pole-Mount Dual 2 3/8″ Tenon; Top-Mount Horizontal 90o for 4″ Square Pole Bronze Download KT-PMTT-4SQ-T90 Pole-Mount Triple 2 3/8″ Tenon; Top-Mount Horizontal 90o for 4″ Square Pole Bronze Download KT-PMTT-4SQ-Q90 Pole-Mount Quad 2 3/8″ Tenon; Top-Mount Horizontal 90o for 4″ Square Pole Bronze Download KT-ALED-GS-S1-KIT Reversible Glare Shield Kit, Small. Fits “S1” Fixture Bodies Bronze Download KT-ALED-GS-M1-KIT Reversible Glare Shield Kit, Medium. Fits “M1” Fixture Bodies Bronze Download KT-ALED-GS-L1-KIT Reversible Glare Shield Kit, Large. Fits “L1” Fixture Bodies Bronze Download KT-PMST-SQ-S Pole-Mount Single 2 3/8″ Tenon; Side-Mount for Square Pole Bronze Download KT-PMST-R-S Pole-Mount Single 2 3/8″ Tenon; Side-Mount for Round Pole Bronze Download KT-WMT-S Wall-Mount Tenon Adaptor; Single 2 3/8 Bronze Download KT-WMT-S90 Wall Mount-Tenon Adaptor; Single 2 3/8″ 90o Bronze Download KTS-MW3-12V-PKO Microwave Occupancy Sensor with Bi Level Dimming and Adjustable hold and standby times.
Designed for Quick Install into select Keystone LED fixtures. No wiring required.White Download KTS-PIR3-12V-PKO PIR Occupancy/Daylight Sensor | Pre-wired for Quick Installation | Performance Parameters
Set by Remote Control (sold separately)White Download KTS-MW3-REMOTECONTROL Remote Control to adjust settings on Keystone KTS-MW3 sensors. One remote can adjust
multiple sensors.N/A Download - Poles
Catalog Number Description Spec Sheet KT-SP-4SQ-15-11G-UNV 4in Square Steel Pole |15ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes pole,
pole cap, base plate cover,
handhold cover, and plugs for the universal drill patternDownload KT-SP-4SQ-20-11G-UNV 4in Square Steel Pole |20ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes pole,
pole cap, base plate cover,
handhold cover, and plugs for the universal drill patternDownload KT-SP-4SQ-25-11G-UNV 4in Square Steel Pole |25ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes pole,
pole cap, base plate cover,
handhold cover, and plugs for the universal drill patternDownload KT-SP-5SQ-30-7G-UNV 5in Square Steel Pole |30ft | 7GA | Universal Drill Pattern on All 4 Sides | Includes pole,
pole cap, base plate cover,
handhold cover, and plugs for the universal drill patternDownload - Anchor Bolts
Catalog Number Description Spec Sheet KT-ABOLT-4SQ-K1 Anchor Bolt Kit for 4″ Square Poles | 4x .3/4in x 30in Bolts and hardware. Includes template Download KT-ABOLT-5SQ-K1 Anchor Bolt Kit for 5″ Square Poles | 4x 1in x 36in Bolts and hardware. Includes template Download - Pole Kits
Catalog Number Description Spec Sheet KT-SP-4SQ-15-11G-UNV-K1 4in Square Steel Pole Kit |15ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes
pole, pole cap, base plate
cover, handhold cover, plugs for the universal drill pattern, and (4) Anchor Bolts with
hardware and templateDownload KT-SP-4SQ-20-11G-UNV-K1 4in Square Steel Pole Kit |20ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes
pole, pole cap, base plate
cover, handhold cover, plugs for the universal drill pattern, and (4) Anchor Bolts with
hardware and templateDownload KT-SP-4SQ-25-11G-UNV-K1 4in Square Steel Pole Kit |25ft | 11GA | Universal Drill Pattern on All 4 Sides | Includes
pole, pole cap, base plate
cover, handhold cover, plugs for the universal drill pattern, and (4) Anchor Bolts with
hardware and templateDownload KT-SP-5SQ-30-7G-UNV-K1 5in Square Steel Pole Kit |30ft | 7GA | Universal Drill Pattern on All 4 Sides | Includes
pole, pole cap, base plate
cover, handhold cover, plugs for the universal drill pattern, and (4) Anchor Bolts with
hardware and templateDownload
AREA LIGHTS WITH OPTICSWAP
AREA LIGHTS WITH OPTICSWAP | STOCKING SPECIALS
AREA LIGHTS
AREA LIGHTS | STOCKING SPECIALS
ACCESSORIES
Request a Lighting Layout

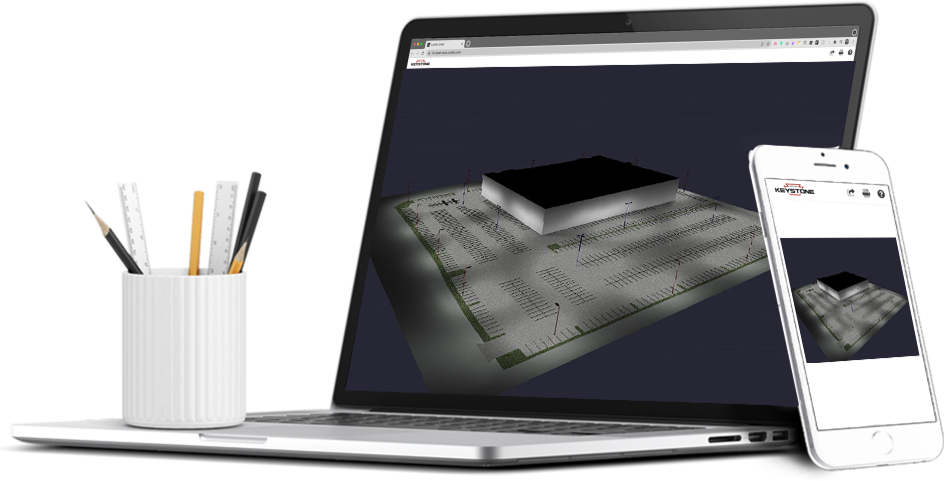

Keystone offers complementary lighting layout services for our products, to help take the next step in bringing your project to life. We can provide answers to your lighting questions to determine how many fixtures you need, what types of lamps are best for your applications, and how to save the maximum amount of energy, all within budget.
By utilizing industry leading lighting layout design software, we provide accurate and dependable application renderings. For new constructions or retrofit, simply provide Keystone with a few key project details, and our lighting designers will get to work on your request.
Request a Lighting Layout Create Your Own Outdoor Lighting Layout HereThe Keystone Difference
